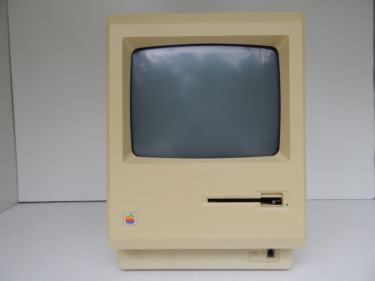

| System Architecture |
Ports |
Disk Storage |
| Processor: |
Motorola 68000, 8 MHz |
| PMMU: |
none |
| FPU: |
none |
| Data Path: |
16-bit, 8 MHz |
| L1 Cache: |
none |
| L2 Cache: |
none |
| 2nd Processor: |
none |
| Slots: |
none |
| Bus type |
Apple proprietary |
| Data Bus width |
16 bit |
| Address bus width |
24 bit |
| CMOS real time clock |
Yes |
|
| USB: |
none |
| ADB: |
none |
| Video: |
none |
| Floppy: |
DB-19 |
| SCSI: |
none |
| Serial: |
RS-232 / RS-422 |
| Parallel: |
none |
| Geoports: |
none |
| Ethernet: |
none |
| FireWire: |
none |
| Mic Type: |
none |
| AirPort Ready: |
n/a |
| Other Ports: |
Printer, Modem, Speaker, |
|
| Floppy Size: |
800K |
| Floppy |
auto |
| Int HD Size: |
none |
| Int HD Interface: |
none |
| Orig CD Speed |
n/a |
| Int CD Support: |
n/a |
| Internal drive bays |
1 |
| Standard floppy drives |
1 - 3.5" x 800k |
| Optional floppy drives: |
1 - 3.5" x 800k |
| * 5 1/4 inch 160k |
none |
| * 5 1/4 inch 1.2MB |
none |
| * 3 1/2 inch 400k |
1 external |
| * 3 1/2 inch 1.44MB |
none |
| * 3 1/2 inch 2.88MB |
none |
| Hard disk controller included |
none |
|
| Memory |
Video and
Graphics |
| Logic Board: |
512K |
| RAM Slots: |
0, n/a |
| Min - Max RAM: |
512K - 512K |
| Min RAM Speed: |
150 ns |
| RAM Sizes: |
n/a |
| Install in Groups of: |
n/a |
| System board memory socket type |
DIP Chips |
| Number of memory module sockets |
18 Soldered |
| Notes: |
|
|
| Graphics Processor |
Uses CPU |
| Screen size -
columns & rows |
bitmapped |
| Video on board |
Built in Monitor |
| Video RAM |
n/a |
| Max colors |
Mono - B & W |
| RGB output |
n/a |
| Composit Video
Output |
none |
| Screen Resolution |
512 x 384 *note:
Screen size is 512x342 |
| Sprites or Missiles |
none |
|
| Physical
Specs. |
Software |
Power |
| Introduced: |
9/1/1984 |
| Discontinued: |
4/1/1986 |
| Form Factor: |
128 |
| Gestalt ID: |
1 |
| Weight (lbs): |
16.5 |
| Dimensions (in): |
13.6 H x 9.6 W x 10.9 D |
| Notes: |
Support Discontinued 9/1/98 |
| Keyboard Specs |
|
| Number of Keys |
58 |
| upper/lower case |
Yes/Yes |
| Sound |
|
| Sound interface device |
|
| Sound Generation |
4 voice |
| ADSR capable |
no |
|
| Addressing Modes: |
24-bit |
| Orig SSW: |
0.0 |
| Orig Enabler: |
none |
| ROM ID: |
$0000 |
| ROM Ver: |
n/a |
| ROM Size: |
64K |
| AppleTalk Ver: |
n/a |
| Mac OS Supported: |
1.0 to 7.0.1P |
|
| Max Watts: |
60 |
| Amps: |
0.50 |
| BTU per Hr: |
205.2 |
| Voltage: |
105-125 |
| Freq Range: |
50-60 Hz |
| Battery Type: |
4.5V #523 |
| Soft Power: |
n/a |
| Pass Through: |
n/a |
| Programming language |
|
| Built in language |
none |
| Built in M L monitor |
none |
|
|
