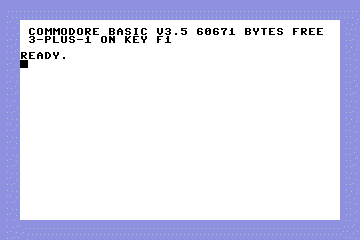

Above is a view of the Plus/4 main screen
Introduced | June 1984 |
Discontinued | |
Release Price | $299.99 |
The Plus 4 was originally announced at the
January 1984 CES
as the Commodore 264. The original concept was
to sell the 264 in one of several different
configurations. The consumer would select the type of
application software they wanted built into their
computer and the dealer would install the appropriate ROM
chip. By the summer 1984 CES this concept was abandoned
probably due to the dealers refusal to either install
their own ROM chips or stock many models of the same
computer. The name was changed to the Plus 4 and all the applications were added at the factory. The Plus 4 was redesigned with a new look and feel. Unlike the C-16 , which is a stripped down version of the Plus 4, uses the same case and keyboard styling as the VIC/C64 line. The Plus 4 can still use the same serial peripherals as the C-64 but comes with its own peripherals. One in particular stands out, the SFS-481, a parallel floppy drive using the new parallel port on the rear of the machine allowing greater speed accessing programs. The Plus 4's cassette and joystick ports are not compatible with the C-64 line. The Plus 4 is lacking a few significant feature found on its older sibling the C-64. Although it improved on the color capabilities, increasing them from 16 to 128 possible colors and adding 12 more sound and graphics commands in BASIC, it is missing the 8 sprites and sophisticated SID chip found on the C-64. The reason for the lack of sophisticated gaming capabilities was probably the Plus 4 was targeting a segment of the home market interested in more serious applications programming. The Plus 4 was not a very good seller mainly due to its incompatibility with the C-64 and the price drop of the C-64 made the 64, which could do basically every thing the Plus 4 could do cheaper, an exceptional value dooming the Plus 4. |
System Architecture
Microprocessor | 7501 |
Clock speed | 1 MHz |
Bus type | CBM proprietary |
Bus width | 8 |
Interrupt levels | N/A |
DMA channels | N/A |
Memory
Standard on system board | 16k |
Maximum on system board | 16k |
Maximum total memory | 64k |
Memory speed and type | 200 ns |
System board memory socket type | |
Number of memory module sockets | |
Memory used on system board | dynamic |
Standard Features | ***** | Disk Storage | ||
ROM size | 20k | Internal disk and tape drive bays | no | |
Optional math coprocessor | no | Standard floppy drives | optional | |
Parallel port type | CBM | Optional floppy drives: | yes | |
RS232C serial ports | yes | * 5 1/4 inch 160k | up to 8 | |
Mouse ports | yes | * 5 1/4 inch 1.2MB | no | |
UART chip used | N/A | * 3 1/2 inch 720k | no | |
Maximum speed | N/A | * 3 1/2 inch 1.44MB | no | |
CMOS real time clock | no | * 3 1/2 inch 2.88MB | no | |
CMOS RAM | no | Hard disk controller included | no | |
Video & Graphics | Sound | |||
Graphics Processor | Sound Interface device | |||
Screen size - Col x Rows | 40 x 25 | Sound generation | ||
Resolution - Colors/High | 128/320 x 200 | ADSR capable | no | |
Resolution - Colors/Low | ||||
Max colors | 128 | Programming language | ||
Sprites or Missiles | no | Built in language | CBM Microsoft BASIC 3.5 | |
Built in M L monitor | yes | |||
Expansion Slots | Keyboard Specs. | |||
Total adapter slots | 1 | Number of keys | 59 | |
Number of 8/16/32 bit slots | 1/0/0 | Upper/lower case | yes/yes | |
Keyboard cable length | N/A | |||
Physical Specs. | Environmental Specs. | |||
* Height | Operating voltage @ 60 Hz | 105-125 VAC | ||
* Width | Maximum power supplied | |||
* Depth | Power supply output - volts | |||
* Weight | Power supply output - amps |
